MECHANICAL TESTING
Mechanical testing is essential to evaluate the physical properties and performance of materials under various loads and conditions. Common tests include tensile testing to measure strength and ductility, hardness testing to assess resistance to deformation, and impact testing to determine toughness. Fatigue testing checks how a material performs under repeated stress, while wear testing evaluates surface durability. These tests help ensure that materials and components meet the required safety and quality standards for their intended applications. The results guide material selection, design decisions, and process optimization in engineering and manufacturing.
UNIVRSAL TESTING MACHINE
-
Make-TE Forcespeed Co.
-
Model-WAW-1000E
-
Computer Control Electro Hydraulic Type
-
Maximum tonnage 100 T
-
Integrated full digital electro-hydraulic servo close-loop control, data processing with data analysis.
-
Display screen for real time graph
-
Load rate control range
-
Elongation rate control
-
Pull out data from machine to software
-
Strain rate control range
-
Load accuracy of ±1%
-
Extensometer –16mm, 25mm, 50mm
-
Special grip attachment with 20KN load Cell to have more accuracy for low tensile strength specimen
-
Test facility for micro tensile specimen
-
Used for Tensile test, Compression test, Bend test
-
Operate in auto mode with desired load and speed of testing

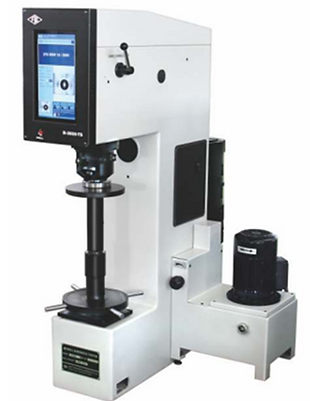

DIGITAL BRINEL HARNESS TESTER
-
Make - FIE INDIA
-
Model - B 3000TS
-
Fully Computerized Touch Screen Brinell Hardness Testing Machine.
-
Load Capacity- 250, 500, 750, 1000, 1500, 3000 kgf.
-
Option for data storage & reports generation.
-
Statistical Evaluation : Software for calculating standard deviation, mean, median, histogram etc.
-
USB Printer port for printer interface with result & graph print out.
-
Facility to measure in manual, Semi-automatic & Automatic Mode.
-
Calibrated as per ISO and ASTM standard.
ROCKWELL HARDNESS TESTER
-
Make - FIE INDIA
-
Model - RASNT
-
Major Load - 60, 100, 150 Kgf.
-
Superficial Load - 15, 30, 45 Kgf.
-
Scale - HRB, HRC, HRA, HRH, HRF.
-
Superficial Scale - HR15N, HR30N, HR45N, HR15T, HR30T, HR45T.
-
Least Count - 1 Unit.
-
Calibrated as per ASTM and ISO
-
Best quality standard hardness block available form DT make to cover all range of Rockwell hardness.
MICRO HARDNESS TESTER
-
Make - Future Tech Corporation
-
Model - FM 810 Fully Automatic
-
Type A - Auto turret & dual indenter.
-
Auto reading & auto stage control.
-
Load - 5g to 2000g (0.005 Kgf to 2 Kgf)
-
Dual Indenter - Knoop & Vickers.
-
Auto conversion of Scale - HV to HRC & other scale.
-
Check case depth in any profile.
-
Can measure hardness up to 2000 HV.
-
NABL scope range form 150 HV to 1800 HV.
-
Auto reading facility ruled out manual innervation in testing.
-
Calibrated as per ISO and ASTM.
-
Auto case depth measurement as per IS, ASTM and ISO.
-
Auto profile tracing.
DIGITAL UNIVERSAL HARDNESS TESTER
Make- Matrix
Model- UHT-X8
8" Touch Screen modular design Digital Universal Hardness Tester
Easy conversion of hardness value of scale Rockwell, Rockwell Superficial, Vickers & Brinell test methods obtained on the display according to GB/ASTM standards.
Major Load can be selected as per the scale.
Pull out data from machine to software.
Automatic Loading & Unloading.
Build in correction factor for convex cylindrical surface.
Close loop, with high accuracy load cell, no need to install weights.
Inbuilt printer can print test data out directly.
Direct port can connect with PC for data communication.
Least Count - 0.1 Unit.
Covers all low load BHN scale from 31.25 to 250 Kgf
Covers all scale of Rockwell
Covers Vickers hardness scale from 5Kgf to 120Kgff
Calibrated as per ASTM and ISO standard
IMPACT TESTING MACHINE
-
Make - FIE
-
Impact Test Machine-As per ASTM & ISO Std.
-
Charpy Impact specimen V, U & Un-notched
-
Testing Temperature Facility:- SuUbzero Charpy Impact Test -195°C to RT & elevated temperature.
-
Maximum capacity for energy absorption 300J.
-
Least Count: 1J
-
Calibration - ASTM & ISO Certified.
-
NIST Certified as per ISO and ASTM
-
Comply to IS 1757, ISO 148, ASTM E23 , ASTM SA 370 and ASTM A370, ISO 9016
-
Feasible to perform impact testing from subsize test specimen of thickness 2.5mm to standard test specimen of 10 X 10X 55mm
-
The impact testing machine also intermediate calibrated to ensure standardization.
-
Subzero impact bath with resolution of 0.1*C
-
Daily standardization of impact machine perform prior to actual testing.
PROFILE PROJECTOR
-
Profile projector with magnification of magnification 20X.
-
Stencil as per ISO and ASTM available with NABL calibration.
-
V and U notch verify on profile projector prior testing of impact test specimen.
BROACH MACHINE
-
NPTCS has inhouse facility for notch preparation.
-
Broach machine is automatic with VFD.
-
Borach available in V and U notch.
-
Due to inhouse notch preparation facility, we can control the quality of test specimen to provide appropriate test results to customers.
MICRO HARDNESS TESTER
-
Make - Future Tech Corporation
-
Model - FM 810 Fully Automatic
-
Type A - Auto turret & dual indenter.
-
Auto reading & auto stage control.
-
Load - 5g to 2000g (0.005 Kgf to 2 Kgf)
-
Dual Indenter - Knoop & Vickers.
-
Auto conversion of Scale - HV to HRC & other scale.
-
•Check case depth in any profile.
-
Can measure hardness up to 2000 HV.
-
NABL scope range form 150 HV to 1800 HV.
-
Auto reading facility ruled out manual innervation in testing.
-
Calibrated as per ISO and ASTM.
-
Auto case depth measurement as per IS, ASTM and ISO.
-
Auto profile tracing.
